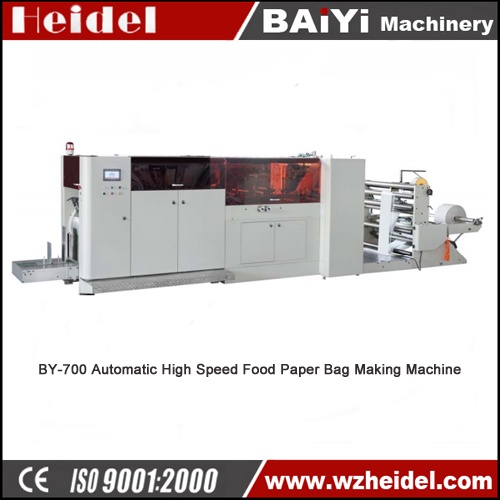

Automatic High Speed Flat Bottom Paper Bag Machine
Product name : Automatic High Speed Flat Bottom Paper Bag Machine
Product No. : BY-700
Monthly Output :
Quality Garantee : Two years
Terms of Payment : TT,LC at sight
Installation&Training : Available
Details:
|
High Speed Flat Bottom Paper Bag Making Machine.
Speed: 600pcs/min. Max Bag length is 710mm. Max Bag Width is 350mm.
Machine to produce the bags： First precut, then seperate.
Produce description:
BY-700 High Speed Flat Bottom Paper Bag Making Machine is to produce food bags like bread bags, KFC and McDonald's bag.
|
Paper gram weight
|
30-80g
|
|
Bag Width
|
100-350mm
|
| Cutting Length |
180-720mm |
|
Bag Length
|
170-710mm
|
|
Side width
|
0-120mm
|
| Standard Flap |
15-18mm |
|
Max.Speed
|
600pcs/min
|
| Max.Roll weight |
600kg |
| Max.Roll Dia. |
1200mm |
| Roll Inner Dia. |
76mm |
|
Glue type
|
Cold Glue System
|
| Web Edge Control Sytem |
Double photocell automatic correction control system |
| Web tension control system |
Automatic constant tension control system |
| Main Motor |
Three Servo Motor |
| Electric |
3 phase,380V,50Hz |
|
Total power
|
13KW
|
|
Machine dimension
|
6900x1800x1700 mm (L*W*H)
|
|
Machine weight
|
3500kg
|

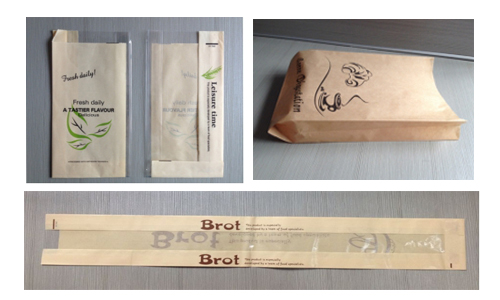

Bag Samples:
|
