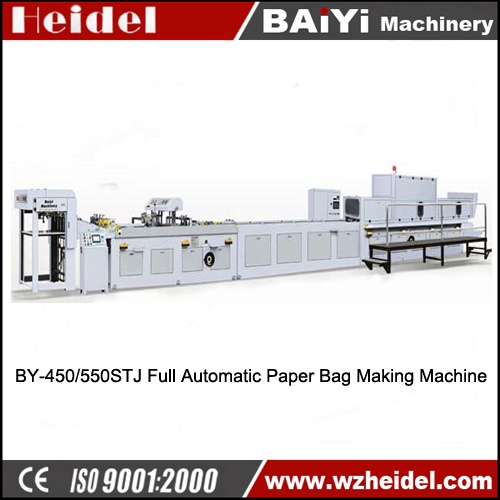

Product name : Paper Bag Making Machine with top folded and bottom carton Inserted
Product No. : BY-550STJ
Monthly Output :
Quality Garantee : One year
Terms of Payment : TT,LC at sight
Installation&Training : Available
             [Next Product]→


Having adsorbed new technology from home and abroad,we successfully developed A new kind of full automatic sheet feeding paper bag making machine with our own design and unique craftwork.It adopts printed creased sheet paper as raw materials and features continuous automatic four nozzles paper feeding system,positioning,creasing,paper bag tube forming,bottom creasing,open the bottom, bottom card pasting,bottom gluing and folding inline.Using PLC control system and touch screen, with automatic production,which increase the working efficiency and save labor cost a lot. It is an ideal production line to make shopping bags, gift bags, super market bags , food bags, etc.

Technical parameter:

Paper gram weight 120-350g
Paper Width(Top Folded) 550-960mm (20-60mm)
Paper Length 380-580mm
Bag Length 260-550mm
Bag Width 200-350mm
Bag bottom width 60-130mm
Speed 35-60pcs/min
Glue type Water-soluble cold glue (Hot-melt glue system is optional)
Suitable paper Kraft paper, Art paper, White cardboard, Laminated paper
Total power 10.5KW 380V
Machine dimension 17800mmX1500mmX2050mm(L*W*H)
Machine weight 8500kg

Working Process:

Machine Parts Brand:

Terms of Payment

TT 30% as deposit, 70% balance payment before delivery.

Delivery Time

Within 45days after receiving the deposit.


Moisture-proof and shock-proof packaging which is suitable for long-distance road/sea transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Quality Guarantee and After-sales Service

Within one year, seller provides all the spare part freely, but the buyer is asked to pay for the freight cost. After one year, the buyer is asked to pay for the replacement. The seller provides long time after-sales service.


Free Installation and training are done by our technician at buyer’s factory.

Buyer should send an invitation letter for visa application.

The return flight tickets, accommodation & traffic expenses shall be paid by the buyer.

Note: Pls feel free to write to us for lasted machine informations.
